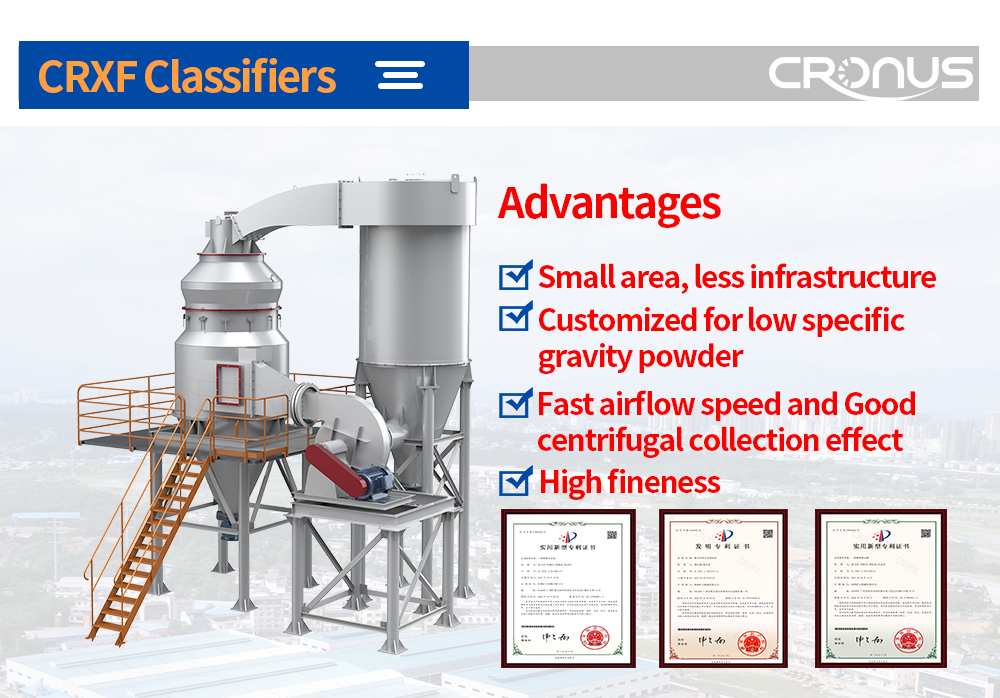

Calcium hydroxide equipment: New Powder Selector
Calcium Hydroxide Equipment: Introduction to the New Powder Selector
The new calcium hydroxide powder selector is a new type of powder selector innovatively developed on the basis of the traditional powder selector. The equipment has a unique design and superior performance. Compared with the traditional general powder selector, it has made a lot of optimizations in terms of floor space, product diversification, operating costs, maintenance costs, etc., which greatly reduces costs, increases efficiency and increases production.
Technical Specifications
Fineness: 200~400 mesh
Production capacity: 9~13t/h
Application Scenario
The new calcium hydroxide powder selector has a diversified range of uses in the calcium hydroxide and limestone industries, while the traditional powder selector is suitable for calcium hydroxide desulfurization and decontamination. When the raw material contains a lot of black slag, the putty powder contains a high amount of black slag, which does not meet the requirements.
Functional Characteristics
The main unit and fan of the calcium hydroxide powder selection machine are independent brackets, which have the following technical characteristics:
- Small footprint design for space efficiency
- Low operating cost for economic benefits
- Enhanced durability for long service life
- Easy maintenance for reduced downtime
- Wide range of use for versatile applications
- Low resonance effect for stable operation
Technical Features
Powder Selection System Comparison
Operating Costs
| System Type | Power Consumption | Total kW |
|---|---|---|
| Traditional powder selection system | 75 + 22 + 5.5 + 5.5 + 5.5 kW (three more spirals) | 113.5 kW |
| Calcium hydroxide powder selection system | 90 + 15 + 0.55 kW | 105.55 kW |
Materials
| System Type | Material Specifications |
|---|---|
| Traditional powder selection machine | Uses general 3.5~3.7mm steel |
| Calcium hydroxide powder selection machine | Uses 8mm 16Mn wear-resistant steel, longer and more stable |
Installation Materials and Time
| System Type | Installation Cost | Installation Time |
|---|---|---|
| Traditional powder selection machine | 90,000 to 100,000 (foundation and platform construction) | 12 to 15 days |
| Calcium hydroxide powder selection machine | Platform frame is half of traditional powder selection machine | 3 to 4 days |
Floor Space and Feed Height
| System Type | Dimensions (L×W×H) |
|---|---|
| Traditional powder selection machine | 9×5×12 meters (elevator is 5 to 10 meters higher than our factory) |
| Calcium hydroxide powder selection machine | 4×6×8 meters |
Maintenance
| System Type | Maintenance Requirements |
|---|---|
| Traditional powder selection machine | Needs to maintain four cyclones, the throwing plate and surrounding wear; pipeline has multiple working conditions and is complex |
| Calcium hydroxide powder selection machine | Only needs to add oil to the classifier and fan every month; no other maintenance cost |
Production Capabilities
| System Type | Production Characteristics |
|---|---|
| Traditional powder selection machine | Suitable for calcium hydroxide desulfurization and decontamination. When raw material contains black slag, putty powder contains high amount of black slag (does not meet requirements) |
| Calcium hydroxide powder selection machine | Can be used in multiple areas in the calcium hydroxide and lime calcium industries |
Resonance Impact
| System Type | Resonance Characteristics |
|---|---|
| Traditional powder selection equipment | Entire set is on the same platform; resonance between multiple power sources is serious, affecting machine life and quality |
| Calcium hydroxide powder selection machine | Main machine and fan have independent brackets, fixed on concrete foundation respectively; resonance impact is comprehensively reduced |
New Powder Selector machine parameter comparison table
| Feed material | Digested calcium hydroxide |
| Finished product particle size | 200~400 mesh (pass rate is 95%) |
| Output (based on processed calcium hydroxide, water content is less than 6%) | >9~13t/h (processing capacity is 18-20 tons) |
| Installation location | Power (kW) |
|---|---|
| Fan | 90 |
| Classifier | 15 |
| Pulse dust collector | 0.55 |
F&Q of New Powder Selector
